Non-woven primary and medium efficient air filter
MAF style medium efficient air filter is applicable to ordinary pressure and temperature、 containing trace of acid, alkali and organic solvents air purification engineering.It acts the pre-filter for HEPA air filter to reduce the load and prolong the service time.
|
Filtration area |
3~3.5㎡ |
Rated air flow |
2000m3/h |
Initial resistance |
34.33Pa（350mm H2O） |
Manual dust efficiency |
85% |
Containing dust |
720g |
 |
 |
 |

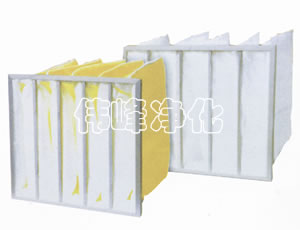

| F5/F6 medium efficient bag air filter |
F7/F8 medium efficient bag air filter |
F9 medium efficient bag air filter |
| Model |
Outer dimension (mm) |
Rated air flow （m3/h） |
Initial resistance （Pa） |
Efficiency
|
Filter material model |
| ZF7(8)-13 |
495×295×600 |
1300 |
| F5 |
50Pa |
| F6 |
| F7 |
110Pa |
| F8 |
| F9 |
120Pa |
|
| 40-50%F5 |
| 60-70%F6 |
| 80-85%F7 |
| 90-95%F8 |
| 98%F9 |
| ( colorimetry ) |
|
HTZ-JB55-1 F5
HTZ-JB60-1 F6
HTZ-JB85-1 F7
HTZ-JB95-1 F8
HTZ-JB98-1 F9 |
| （20"×12"×24"） |
| ZF7(8)-22 |
495×495×600 |
2200 |
| （20"×20"×24"） |
| ZF7(8)-16 |
595×295×600 |
1600 |
| （24"×12"×24"） |
| ZF7(8)-27 |
595×495×600 |
2700 |
| （24"×20"×24"） |
| ZF7(8)-32 |
595×595×600 |
3200 |
| （24"×24"×24"） |
|
Panel style primary air filter
1low resistance、large air volumn；
2long service time；
3Widely used in air conditioning system of primary filtration |
| Panel primary efficient air filter |
Paper frame panel style primary efficient air filter |
Panel medium efficient air filter |
One-off air filter |
|
| Model |
Outer dimension(mm) |
Rated air flow（m3/h） |
Initial resistance（Pa） |
Efficiency% |
Filter material model |
| CG4-8 |
295×295×60 |
800 |
24 |
15(weight system ) |
G1 |
| （20"×12"×24"） |
| CG4-13 |
495×495×60 |
1300 |
| （20"×20"×24"） |
| CG4-22 |
595×295×60 |
2200 |
| （24"×12"×24"） |
| CG4-16 |
595×495×60 |
1600 |
| （24"×20"×24"） |
| CG4-27 |
595×595×60 |
2700 |
| （24"×24"×24"） |
 |
Ultra slim panel style primary air filter
1.low price、thin thickness；
2.low resistance、large air volumn；
3.Widely used in air conditioning system of primary filtration |
| Model |
Outer dimension(mm) |
Rated air flow（m3/h） |
Initial resistance（Pa） |
Efficiency% |
Filter material model |
| CG4-8 |
295×295×100 |
800 |
25 |
40(weight system) |
G1 |
| （20"×12"×1/2"） |
| CG4-13 |
495×295×100 |
1300 |
| （20"×20"×1/2"） |
| CG4-22 |
495×495×100 |
2200 |
| （24"×12"×1/2"） |
| CG4-16 |
595×295×100 |
1600 |
| （24"×20"×1/2"） |
| CG4-27 |
595×495×100 |
2700 |
| （24"×24"×1/2"） |
| CG4-27 |
595×595×100 |
3200 |
| （24"×24"×1/2"） |
 |
Active carbon air filter
Strong adsorption ability, light weight, convenient installation，Widely used in chemical, pharmaceutical, military, aerospace and general commercial, industrial, etc. |
Model |
Specification |
Rated air flow （m3/h） |
Initial resistance （Pa） |
MT01-8 |
292*292*46 |
800 |
≤40 |
MT01-13 |
495*292*46 |
1300 |
≤40 |
MT01-22 |
495*495*46 |
2200 |
≤40 |
MT01-16 |
292*592*46 |
1600 |
≤40 |
MT01-27 |
495*592*46 |
2700 |
≤40 |
MT0132 |
592*592*46 |
3200 |
≤40 |
 |
GIF series HEPA ultra slim air supply outlet
One-time and replaceable structure.Good seal performance,small appearance, light weight and generally good performance. |
Model |
Rated air flow （m3/h） |
Demension L×W×H(mm) |
Air intake（mm） |
Shell material |
Initial resistance（Pa） |
Efficiency（%） |
GIF-01 |
1000 |
484*484*160 |
Φ 300*70 |
aluminium alloy |
≤350 |
99.99 |
GIF-02 |
1250 |
610*610*160 |
Φ 300*70 |
aluminium alloy |
≤350 |
99.99 |
GIF-03 |
1500 |
630*630*160 |
Φ 300*70 |
aluminium alloy |
≤350 |
99.99 |
GIF-04 |
1850 |
915*610*160 |
Φ 300*70 |
aluminium alloy |
≤350 |
99.99 |
GIF-05 |
2500 |
1220*610*160 |
Φ 300*70 |
aluminium alloy |
≤350 |
99.99 |
GIF-06 |
1250 |
600*600*225 |
Φ 300*70 |
aluminium alloy |
≤350 |
99.99 |
GIF-07 |
2500 |
600*1210*225 |
Φ 300*70 |
aluminium alloy |
≤350 |
99.99 |
|
