Model |
Outer dimension（mm） |
Rated air flow(m3/h) |
Initial resistance（Pa） |
Filtration efficiency（%） |
Dust containing capacity（g） |
GK-5A |
320*320*220 |
500 |
Paper partition
struct
≤235.44
（24mm H2O） |
≥99.99 |
400 |
GK-7A |
484*484*150 |
700 |
450 |
GK-8A |
600*600*150 |
800 |
500 |
GK-10A |
484*484*220 |
1000 |
500 |
GK-10B |
420*600*200 |
1000 |
500 |
GK-10C |
610*610*150 |
1000 |
600 |
GK-10D |
600*420*200 |
1000 |
500 |
GK-12A |
820*600*150 |
1200 |
750 |
GK-12B |
560*600*200 |
1200 |
750 |
GK-13A |
720*760*150 |
1300 |
800 |
GK-15A |
630*630*220 |
1500 |
900 |
GK-15B |
726*484*220 |
1500 |
750 |
GK-15C |
915*610*150 |
1500 |
850 |
GK-15D |
820*600*200 |
1500 |
1000 |
GK-20A |
968*484*220 |
2000 |
1200 |
GK-20B |
1220*610*220 |
2000 |
1200 |
GK-22A |
945*630*220 |
2200 |
1400 |
GK-30A |
1260*630*220 |
3000 |
1800 |
|

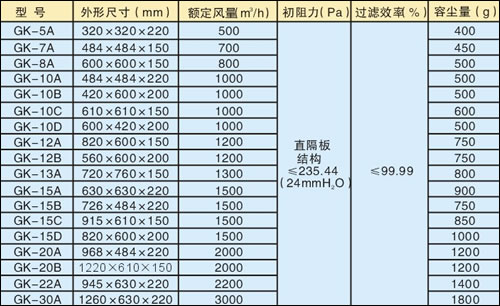

GK series HEPA air filter
GK series HEPA air filter is made of superfine glass fiber.And it is made up of paper base laminate which act as dummy plate and wood frame or metal frame.It has many features,such as,high filtration efficiency, low resistance, large dust capacity.Widely used in various local purification equipment and clean workshop.It purifies in normal temperature, atmospheric pressure and wet conditions usually. |
|
| Model |
Outer dimension(mm) |
Rated air flow(m3/h) |
Initial resistance(Pa) |
Filtration efficiency(sodium flame test %) |
Dust containing capacity(g) |
| GKYS-9A |
484×484×90 |
900 |
GKYS series
≤245 |
Category A ≥99.995
Category B ≥99.998 |
226 |
| GKYS-13A |
726×484×90 |
1350 |
339 |
| GKYS-18A |
968×484×90 |
1800 |
452 |
| GKYS-13A |
610×610×90 |
1300 |
360 |
| GKYS-19A |
915×610×90 |
1900 |
540 |
| GKYS-15A |
630×630×90 |
1500 |
383 |
| GKYS-22A |
945×630×90 |
2250 |
574 |
| GKYS-30A |
1260×630×90 |
3000 |
766 |
|

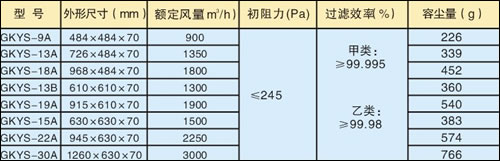

GKYS series Mini-pleat air filter
Our company has introduced the advanced production line and manufacturing technology. Filter material is made of superfine glass fiber.It can be combination assembly with different outer frame.Light weight, small size and reliable sealing which can reduce the labor intensity、 clean workshop space and the cost of projects. |
 |
Model |
Outer dimension（mm） |
Rated air flow(m3/h) |
Initial resistance（Pa） |
Filtration efficiency（%） |
Dust containing capacity（g） |
GKTL-9A |
484*484*90 |
900 |
≤125
（12.8） |
Category A ≥99.995
Category B ≥99.998 |
226 |
GKTL-13A |
726*484*90 |
1350 |
339 |
GKTL-18A |
968*484*90 |
1800 |
452 |
GKTL-13B |
610*610*90 |
1300 |
360 |
GKTL-19A |
915*610*90 |
1900 |
540 |
GKTL-15A |
630*630*90 |
1500 |
383 |
GKTL-22A |
945*630*90 |
2250 |
574 |
GKTL-30A |
1260*630*90 |
3000 |
766 |
|

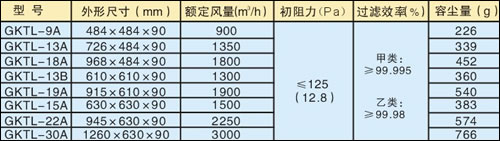

GKTL series Mini-pleat low resistance HEPA air filter
It is made of imported low resistance filter material. Compared with ordinary hepa filter,it has many advantages that are low resistance high efficiency、lightweight、reducing the height of tall buildings、lessen the volumn of static pressure.It purifies in normal temperature, atmospheric pressure and wet conditions usually. Especially applicable to the need of efficient air filters covering high efficiency of purification workshop. |
 |
| Item\Model |
GKA-3S-C |
GKA-5S-C |
GKA-8S-C |
GKA-12S-C |
GKA-15S-C |
| Outer dimension(mm) |
305×610×150 |
460×610×150 |
610×610×150 |
820×610×150 |
915×610×150 |
| Rated air flow(m3/h) |
300 |
550 |
800 |
1200 |
1500 |
| Filtration efficiency(sodium flame test %) |
≥99.99％ |
| Initial resistance(Pa) |
≤220Pa(22.4mmH2O) |
| Allowing air moisture |
Relative humidity ≤100％ |
| Dust containing capacity(g) |
300 |
450 |
600 |
750 |
850 |
| Weight（kg） |
≈5 |
≈8 |
≈10 |
≈13 |
≈15 |
|

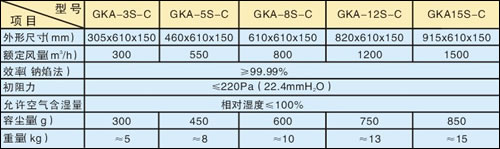

| GKA series moisture-resistant HEPA filter
Series GKA Moisture-Resistant HEPA filter is made of super fine glass fiber paper as media,sized paper through special moisture resistance treatment aluminum as frame.High filtration efficiency, low resistance ,large dust containing capacity and good performance of moisture-resistance.It purifies in normal temperature, atmospheric pressure and wet conditions usually.Especially suitable for air purification of pharmaceutical and infusion industry with high humidity environment. |
|
