The ozone generator adopts the latest air conditioning system.It is widely used in electronics, light, chemical, biological, pharmaceutical, scientific research project, etc.And it is necessary for air purification system.
Mainly used for workshop and cleanroom disinfection.Ozone generator system：Introduce Japanese plasma generated ozone technique，stay a surface working state，large and stable amount of ozone outlet.Because of its material and the characteristics of the technology,it has has strong adaptability to environment, temperature, humidity when it works.And it can work for long continuous time which makes ture that customer are strict with performance and using life.
The generator is coverd with surface plasma, composite ceramic medium, containing gold materials.The core technology is adopting Nano coatings and replaces of pipe type glass medium generator tube.Standard service life is about 30,000 hours which marks a new milestone that combining HVAC system and modern technology.
Control system：adopt import original programmable controller type micro-computer program time controller.
It used A ~ B separately，can undertake portion control and integrated control which is intelligent control or manual control.
Ventilated structure：This machine is completely open structure，structure more delicate, science,low air resistance，reduce wind resistance over 50%.Air flue and air conditioner box can all be installed. |

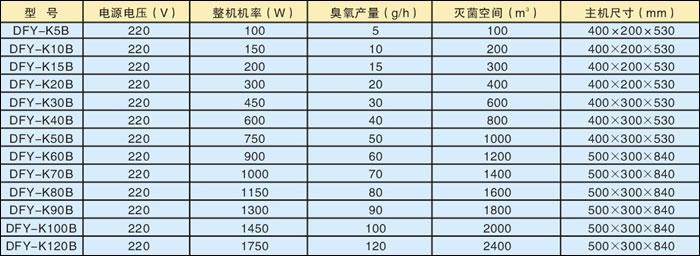

| Model |
Power supply(V) |
Ozone production(g/h) |
Power（W） |
Sterilization space(m3） |
Outer demension（mm） |
| DFY-K5B |
220 |
5 |
100 |
100 |
400*200*530 |
| DFY-K10B |
220 |
10 |
150 |
200 |
400*200*530 |
| DFY-K15B |
220 |
15 |
200 |
300 |
400*200*530 |
| DFY-K20B |
220 |
20 |
300 |
400 |
400*200*530 |
| DFY-K30B |
220 |
30 |
450 |
600 |
400*300*530 |
| DFY-K40B |
220 |
40 |
600 |
800 |
400*300*530 |
| DFY-K50B |
220 |
50 |
750 |
1000 |
400*300*530 |
| DFY-K60B |
220 |
60 |
900 |
1200 |
500*300*840 |
| DFY-K70B |
220 |
70 |
1000 |
1400 |
500*300*840 |
| DFY-K80B |
220 |
80 |
1150 |
1600 |
500*300*840 |
| DFY-K90B |
220 |
90 |
1300 |
1800 |
500*300*840 |
| DFY-K100B |
220 |
100 |
1450 |
2000 |
500*300*840 |
| DFY-K120B |
220 |
120 |
1750 |
2400 |
500*300*840 |
|
|
