| HEPA unit/HEPA box |
HEPA top air supply outlet |
Down style HEPA box |

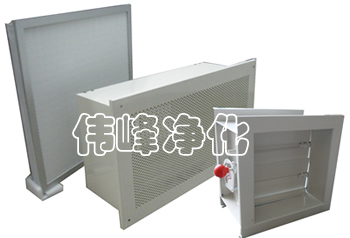

GKF series HEPA box，shell with cold rolled steel plate making，surface is with electrostatic
spraying coating.
GKF series HEPA box acts as high efficient filtration device when reform and construction which is installed in the clean room ceiling.
GKFseries HEPA、sub-HEPA box are widely used for reconstruction and new buildings at different levels of clean room.GKF series HEPA box can shorten air clean engineering design and construction period.Less investment and simple construction.
Main performance
1.Purification efficiency：high efficient≥99.99％（Sodium flame method）
sub-high efficient≥85％（Sodium flame method）
2.initial resistance：high efficient≤235.44Pa
sub-high efficient≤69Pa |

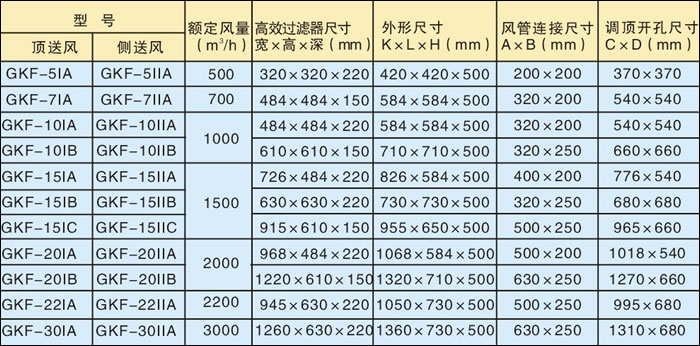

Model |
Rated air flow(m3/h) |
HEPA Filter demension W*H*L (mm) |
Outer demension W*H*L (mm) |
Air duct connection demension A*B(mm) |
Ceiling hole demension C*D (mm) |
| Roof air supply |
Sidewall air supply |
| GKF-5IA |
GKF-5IIA |
500 |
320*320*220 |
420*420*500 |
200*200 |
370*370 |
| GKF-7IA |
GKF-7IIA |
700 |
484*484*150 |
584*584*500 |
320*200 |
540*540 |
| GKF-10IA |
GKF-10IIA |
1000 |
484*484*220 |
584*584*500 |
320*200 |
540*540 |
| GKF-10IB |
GKF-10IIB |
610*610*150 |
710*710*500 |
320*250 |
660*660 |
| GKF-15IA |
GKF-15IIA |
1500 |
726*484*220 |
826*584*500 |
400*200 |
776*540 |
| GKF-15IB |
GKF-15IIB |
630*630*220 |
730*730*500 |
320*250 |
680*680 |
| GKF-15IC |
GKF-15IIC |
915*610*220 |
955*650*500 |
500*250 |
965*660 |
| GKF-20IA |
GKF-20IIA |
2000 |
968*484*220 |
1068*584*500 |
500*200 |
1018*540 |
| GKF-20IB |
GKF-20IIB |
1220*610*220 |
1320*710*500 |
630*250 |
1270*660 |
| GKF-22IA |
GKF-22IIA |
2200 |
945*630*220 |
1050*730*500 |
500*250 |
995*680 |
| GKF-30IA |
GKF-30IIA |
3000 |
1260*630*220 |
1360*730*500 |
630*250 |
1310*680 |
|
|
