| (Fireproofing Rank A)rock wool and glass wool sandwich panels |
YX25-205-820(developed width 1000)
YX25-205-1025(developed width 1200) |
YX35-125-720(developed width 1000)
YX35-125-875(developed width 1200) |
 |
 |
 |
| Tile（blue） |
950type corrugated battenboard |
950 corrugated battenboard lap joint |
 |
 |
 |
| matchboard install |
H panel install |
| Due to the clean and beautiful color steel and different of the inner material,so it has different characteristic.It has some incomparable advantages over traditional building materials in appearance and properties and without the decorating again.Therefore more and more the architect and building units have favours of using it.Widely applied in workshops, warehouses, purification, office buildings, mobile combined-type house, adding layer of buildings, internal partition, refrigerator, freezer, etc.Special widely used in partition of electron and pharmaceutical industry that very require space environment. |
 |
 |
| Rock wool sandwich panel(keep warm,heat insulation) |
PU sandwich panel |
 |
 |
| EPS sandwich panel |
950 corrugated sandwich panel |

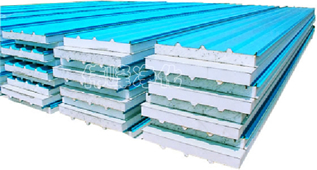

Sandwich panel
EPS insulation sandwich panel is formed through the automated machines pressed ,then two layers of steel panel(up and bottom) and extinguish type polystyrene foamed board will be pressurized and heated by high strength agglomerant.
Usage:
1、Hang ceiling,wall,partition for clean workshops and purifying products；
2、Industrial workshop and warehouse；
3、Refrigerator, air conditioner wall panels；
4、The original building adding layer；
5、Big span roofing panel for ideal material. |
| |
PU、Rock wool sandwich panel
PU、Rock wool sandwich panel are made of two layers of fireproofing color steel and antiflaming polyurethane foam or complex rock wool.Widely used in the workshop,cold storage, gymnasium, warehouse ,exhibition hall,mobile house and huge amusement park.
Main features:
1、Light, novelty, beautiful，PU weight in general is 10Kg/m 2 -14kg/m 2
,The equivalent of red brick 1/30，no need to decorate.Rock wool weight in general is 13kg/m 2 -21kg/m 2 .
2、Strength, stiffness and stability, impact resistance, good aseismic performance,and resistant to corrosion,Witterungsbest?ndigkeit.Used for wall, bearing structure, the average house is without beam.
3、Keeping warm,heat insulation, sound insulation, condensation prevention performance are good .
4、A high degree of prefabricate assembly, construction period can be shorten over 40% compared to traditional buildings.
5、The remarkable characteristics of rock wool sandwich panel is non-pollution which meets the fire requirement. |
|
